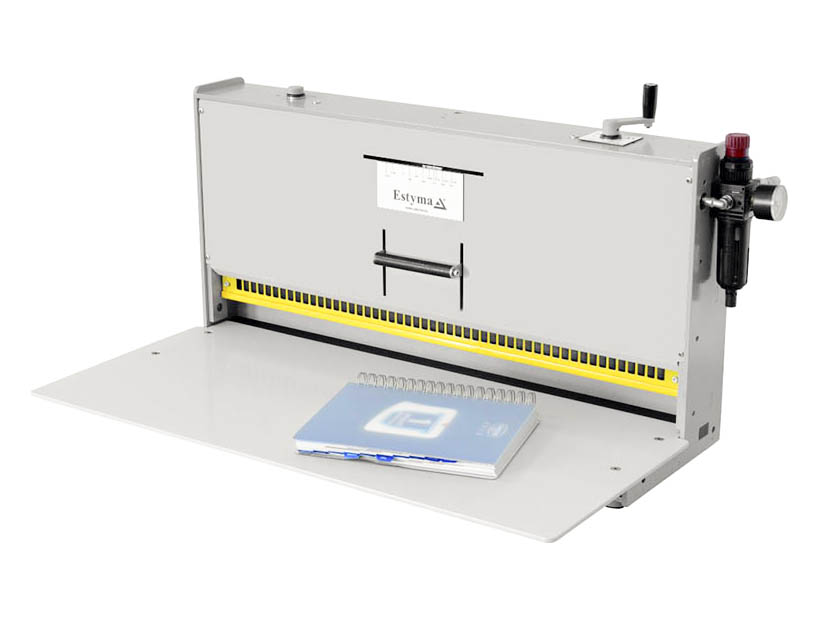

PNEUMATIC BINDING MACHINE FOR DOUBLE LOOP SPIRALS TYPE ZS2-710

Pneumatic binding machine for spirals is used for calendars with hangers and paper pads. Your printing materials are neatly and firmly bound. Maximum binding length is 700mm, spiral size from 3/16” to 1 ¼”.

100% safety

Estyma puts great care in safety when using printing machines. Therefore, this machine is equipped with a specially designed safety barier, which protects operator from any accident during work.

The machine will not start operation, if there is any object under the safety barier handle.

Low noise and reliability

Pneumatic binding machine is a uniquely designed device, providing low noise operation, durability and reliability. Carefully designed in every detail of the design project, ensures problem-free operation at high levels of use.

Specification

Technical Data
Binding length	Up to 700mm
Spiral diameter	From 3/16 up to 1 ¼”
Capacity	Up to 500pcs/h (depending on calendar/paper size and operator’s proficiency)
Operating personnel	1 person
Air pressure supply	6,3 - 10 Bar
Working pressure	6,3 Bar – must be set on the pressure regulator
Air consumption	Up to 0,5m3/h
Dimensions width/height/length	42 cm / 44 cm / 81 cm
Weight	58 kg

Estyma.EU

Estyma provides highest quality of its machines, devices and various products such as double loop spirals for calendars and a wide range of hangers. Our services also include calendar, paper pad and poster binding.

In the market since 1989.


